Auriga

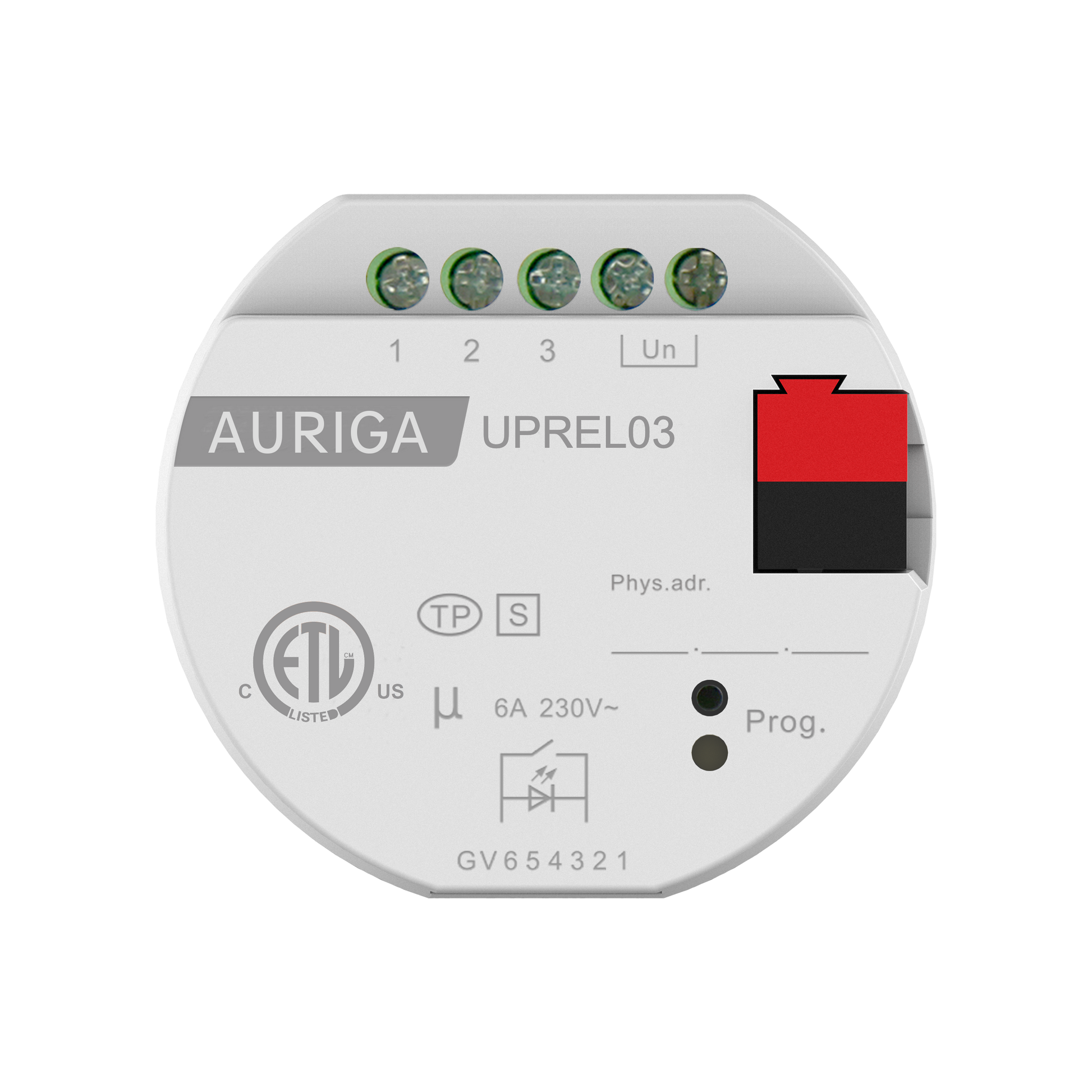

Relay Field 3 Ch - 6A + Dry Contact and LED

Relay Field 3 Ch - 6A + Dry Contact and LED

Regular price $250.00 USD
Regular price Sale price $250.00 USD
Sale Sold out
Quantity

Relay 3 channels,  Max. switching current 6A/channel, total current of 3 channels must be less than 12A. Rated voltage 115V-250V AC, 50/60Hz, Main KNX functions including switch, shutter, valve, heating, fan control.
Inputs can be individually configured per 4 Ch input & 4 Ch input/LED output, cable length≤10M, dry contact input, 5V/12V DC LED output.
Power: KNX Bus only
